เครื่องวัดสี UltraScan VIS สำหรับทึบแสง โปร่งแสง และโปร่งใส คุณภาพมาตรฐานอุตสาหกรรม

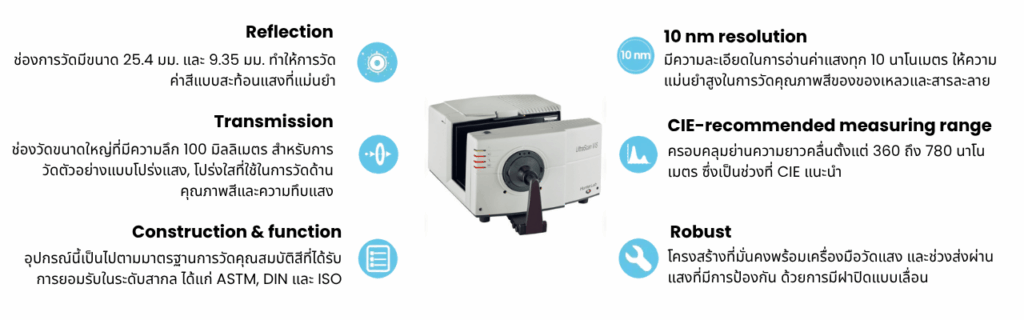

คุณสมบัติของเครื่องวัดสี UltraScan VIS
เครื่องวัดสีตั้งโต๊ะ วัดค่าสีได้ทั้งตัวอย่างทึบแสง โปร่งแสง และโปร่งใส ทั้งของแข็งและของเหลวโดย เครื่องวัดสี UntraScan VIS (USVIS) เป็นเครื่องวิเคราะห์คุณภาพสี ที่ใช้หลักการอ่านของการวัด ( Geometry ) เป็นแบบ Diffuse d/8° สามารถวัดแบบ สะท้อนแสง, d/8° total transmission, d/0° regular transmission, เป็นเครื่องควบคุมคุณภาพสี ที่มีแหล่งกำเนิดแสงเป็นแบบเพาส์ซีนอนแลมป์ (Pulsed Xenon Lamp), ระบบของการวัดเป็นแบบ Dual-Beam Spectrophotometer ช่วงความยาวคลื่นสเปกตรัม 360 – 780 nm ครอบคลุมช่วงสีตามมาตรฐาน CIE มีความละเอียดในการวัดคุณภาพสี (Wavelength Resolution) น้อยกว่า 2 นาโนเมตร ทำให้ค่าของการวัดสีมีความแม่นยำ การรับประกันและซอฟต์แวร์ในชุด เช่น EasyMatch QC software สำหรับวิเคราะห์ข้อมูลการวัดสี ซึ่งสามารถรองรับการวัดตัวอย่างงานเคมีภัณฑ์ เช่น ผงซักฟอก, สีผง, ตัวอย่างงานบรรจุภัณฑ์ เช่น ฟิล์ม, ขวดพรีฟอร์ม, ขวดทึบแสง, ตัวอย่างงานอาหาร เช่น น้ำมัน, ตัวอย่างงานสิ่งทอ เช่น เส้นใย, พรม, ตัวอย่างงานพลาสติก เช่น เรซิ่น, เลนส์, เม็ดพลาสติก และอื่น ๆ
ชุดแหล่งกำเนิดแสง (Light Source) และหลักการทำงานเครื่อง (Optical Geometry)
- ใช้แหล่งกำเนิดแสงเป็นแบบ หลอดซีนอนแลมป์ (Pulsed Xenon Lamp) ที่ปล่อยแสงเป็นช่วง ๆ และผ่านการกรองเพื่อให้แสงมีคุณสมบัติใกล้เคียงกับแสงกลางวันมาตรฐาน D65
- เป็นเครื่องวัดสีตั้งโต๊ะ แบบ Duo Beam ที่มี Photo Diode Array (PDA) จำนวน 256 x 2 PDA จึงทำให้การอ่านค่าสีตัวอย่างมีความละเอียดและแม่นยำต่อการอ่านค่าสีในงานอุตสาหกรรมต่างๆที่ต้องการควบคุมคุณภาพของวัตถุดิบก่อนการผลิตและผลิตภัณฑ์ก่อนจำหน่ายออกสู่กลุ่มลูกค้า
- สามารถวัดคุณภาพสีที่ช่วงความยาวคลื่น 360 – 780 นาโนเมตร full CIE visible range
- สามารถแสดงรายงานค่าความละเอียดในแต่ละช่วงของสีตามความยาวคลื่นที่ 10 นาโนเมตร
- เครื่องวัดสี มีคุณภาพในการอ่านค่าสีตัวอย่างด้วยความละเอียดน้อยกว่า 2 นาโนเมตร (Resolution
- การวัดแบบทะลุผ่าน (Transmission) สามารถเลือกโหมดการวัดได้ทั้งแบบ Total Transmission (TTRAN) และ Regular Transmission (RTRAN)
- มีขนาดช่องวัดตัวอย่าง (Port Diameter / View Diameter ) ที่สามารถเปลี่ยนการใช้งานได้หลายขนาด LAV และ SAV ให้เลือกใช้งานตามความเหมาะสมของตัวอย่างที่ต้องการนำมาวัดค่าคุณภาพสี
- Large Area View (LAV): 25 mm (1 in) illuminated/19 mm (0.75 in) measured
- Small Area View (SAV): 9.5 mm (0.375 in) illuminated/6 mm (0.25 in) measured
- ช่องวัดตัวอย่างด้านหน้าเครื่องสำหรับตัวอย่างทึบแสง (Reflectance มี 2 modes คือ RSIN และ RSEX
- ช่องวัดตัวอย่างด้านในเครื่อง สำหรับวัดคุณภาพตัวอย่างสีแบบโปร่งแสง (Translucent) โปร่งใส (Transmission) ที่สามารถเลือกการวัดค่าสีตัวอย่างแบบ TTRAN (Total Transsmission) และ RTRAN (Regular Transmission) ทำให้ใช้งานได้หลายลายผลิตภัณฑ์
- ช่องใส่ตัวอย่างแบบทะลุผ่าน (Transmission Compartment) เปิด 3 ด้าน มีขนาดความลึก x ความกว้าง x ความสูง ไม่น้อยกว่า 10.2 ซม. x 35.6 ซม. x 16.5 ซม. เพื่อสามารถใส่ตัวอย่างได้ง่ายขึ้นและสามารถวัดตัวอย่างได้หลากหลายยิ่งขึ้น
- ค่าการอ่านซ้ำ 20 ครั้ง ของเครื่อง ( Repeatability ) มีค่าน้อยกว่า 0.03ΔE* CIE L*a*b* on white tile in LAV modes

Product Specifications
Measurement Principle: Dual-beam spectrophotometer
Geometry: Diffuse d/8° reflectance, d/8° total transmission, d/0° regular transmission
Spectrophotometer: Two 256 element diode arrays with a high resolution, concave holographic grating
Sphere Diameter: 152 mm (6 in.)
Sphere Coating: Spectraflect™ for sphere, Duraflect™ for port plate and specular exclusion door
Port Size/Measured Area:
- Port Diameter/View Diameter in RSIN/RSEX reflectance modes
- Large Area View (LAV): 25 mm (1 in) illuminated/19 mm (0.75 in) measured
- Small Area View (SAV): 9.5 mm (0.375 in) illuminated/6 mm (0.25 in) measured
- Port Diameter/View Diameter in TTRAN transmittance modes
- Large Area View (LAV): 25 mm (1 in) illuminated/17.4 mm (0.69 in) measured
- Small Area View (SAV): 25 mm (1 in) illuminated/10 mm (0.40 in) measured
- Port Diameter/View Diameter in RTRAN transmittance mode where lens is field stop for all areas of view
- Large Area View (LAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
- Small Area View (SAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
Lens Switching for LAV/SAV: Automatic
Specular Component: Automated Included (RSIN) or Excluded (RSEX) in reflectance
Spectral Range: 360 nm – 780 nm full CIE visible range
Wavelength Resolution: < 2 nm
Effective Bandwidth: 10 nm equivalent triangular
Reporting Interval: 10 nm
Photometric Range: 0 to 150 %
Photometric Resolution: 0.003 % (0.01 % reported)
Light Source: Pulsed Xenon lamp, filtered to approximate D65 daylight
Automatic UV Control:
- 400 nm cutoff filter for UV control and UV exclusion
- Optional 420 nm cutoff filter for UV exclusion
Flashes per Measurement: 1 in LAV mode (4 in. SAV mode)
Measurement Time: < 5 seconds
Transmission Modes: Total (TTRAN) and Regular (RTRAN)
Transmission Compartment: Large and open on 3 sides, 10.2 cm D X 35.6 cm W x 16.5 cm H (4 in. D x 14 in. W x 6.5 in. H)
Standards Conformance
- Reflectance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C
- Transmittance: CIE 15:2004, ASTM E1164, DIN 5033 Teil 7 and JIS Z 8722 Condition E, G Haze conformance per ASTM D1003 Section 8. Procedure B Spectrophotometer
Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
Colorimetric Repeatability (20 readings range):
- < 0.03 ∆E* CIE L*a*b* on white tile in LAV and SAV modes
- < 0.05 ∆E* CIE L*a*b* on blue denim tile in LAV and SAV modes
Spectral Repeatability: Max 0.20 peak-to-peak between 435 nm and 695 nm
Inter-instrument Agreement: ∆E*
- < 0.15 CIE L*a*b* (Avg) on BCRA II Tile Set ∆E*
- < 0.25 CIE L*a*b* (Max) on BCRA II Tile Set
Dimensions:
- Height: 27.9 cm (11 in.)
- Width: 42.0 cm (16.5 in.)
- Depth: 49.8 cm (19.6 in.)
- Weight: 20.4 kg (45 lbs)
Power:
- 100 to 240 VAC, 47 to 63 Hz
- 60 watts passive, 120 watts maximum
Interface: RS-232C serial, 19,200 baud, DB9 (female) terminal
Operating Environment: 10° to 40°C (50° to 104° F), 10 % to 90 % RH, noncondensing
Storage Environment: -21° to 66°C (-5° to 150° F), 10 % to 90 % RH, noncondensing
Standard Accessories:
- Calibrated instrument white tile
- Certificate of traceability
- Black calibration light trap
- Transmittance zero calibration plate
- Green diagnostic tile
- Wavelength diagnostic filter
- Reflectance sample clamp
- LAV and SAV apertures
- RS-232C cable
- USB-to-Serial adapter
- Power cord
- EasyMatch QC Software
- EasyMatch QC Basic manual
