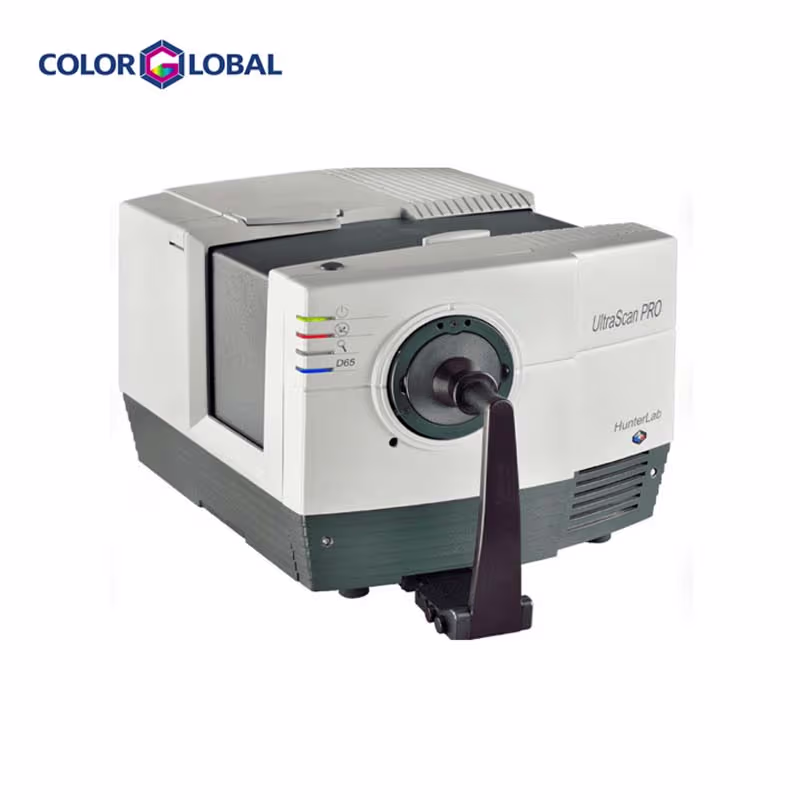

เครื่องวัดสี UltraScan PRO คุณภาพสูง สำหรับตัวอย่างทึบแสง โปร่งแสง และโปร่งใส

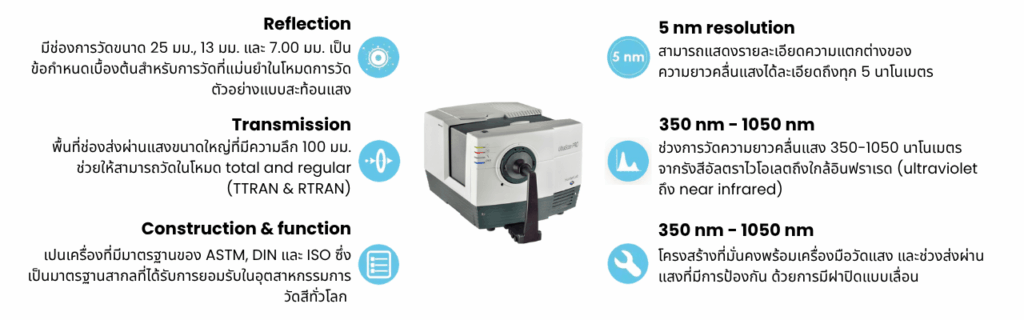

คุณสมบัติของเครื่องวัดสี UltraScan PRO
ชุดแหล่งกำเนิดแสง (Light Source) และหลักการทำงานเครื่อง (Optical Geometry)
- ระบบของการวัดเป็นแบบ Dual-Beam Spectrophotometer เพื่อให้ค่าของการวัดสีมีความแม่นยำมากขึ้น ซึ่งสามารถรองรับการวัดงานเคมีภัณฑ์ เช่น ผงซักฟอก, สีผง, งานบรรจุภัณฑ์ เช่น ฟิล์ม, ขวดพรีฟอร์ม, ขวดทึบแสง, งานอาหาร เช่น น้ำมัน, งานสิ่งทอ เช่น เส้นใย, พรม, งานพลาสติก เช่น เรซิ่น, เลนส์, เม็ดพลาสติก และอื่น ๆ
- แหล่งกำเนิดแสงเป็นแบบเพาส์ซีนอนแลมป์ (Pulsed Xenon Lamp)
- หลักของการวัด ( Geometry ) ในโหมดการสะท้อนแสง (Reflectance) และโหมดการทะลุผ่านของแสง (Total Transmission) เป็นแบบ Diffuse 8 องศา (d/8)
- วัดแบบ สะท้อนแสง (Reflectance) ได้ทั้งแบบ Specular Included และ Specular Excluded
- การวัดแบบทะลุผ่าน (Transmission) สามารถเลือกโหมดการวัดได้ทั้งแบบ Total Transmission (TTRAN) และ Regular Transmission (RTRAN)
- สามารถวัดค่าแสงที่มีความเข้มแสง (Photometric Range) ในช่วงไม่ต่ำกว่า 0-150 % ได้
- มีขนาดช่องวัดตัวอย่าง (Port Diameter / View Diameter ) ช่องวัดตัวอย่างด้านหน้าเครื่องสำหรับตัวอย่างทึบแสง (Reflectance modes : แบบ RSIN/RSEX)
- พอร์ตขนาดใหญ่ (LAV) มีขนาด 25 มม. มีพื้นที่วัด 19 มม.
- พอร์ควัดขนาดกลาง (MAV) มีขนาด 13 มม. มีพื้นที่วัด 9 มม.
- พอร์ตวัดขนาดเล็ก (SAV) มีขนาด 7 มม. มีพื้นที่วัด 4 มม.
- สามารถวัดตัวอย่างด้านในเครื่องสำหรับตัวอย่างโปร่งแสง โปร่งใส (Transmittance modes : แบบ TTRAN )
- ช่องวัดขนาดใหญ่ (LAV) มีขนาด 25 มม. มีพื้นที่วัด 17.4 มม.
- ช่องวัดขนาดกลาง (MAV)มีขนาด 25 มม. มีพื้นที่วัด13.2 มม.
- ช่องวัดขนาดเล็ก (SAV) มีขนาด 25 มม. มีพื้นที่วัด 11.6 มม.
- สามารถวัดตัวอย่างด้านในเครื่องสำหรับตัวอย่างโปร่งแสง โปร่งใส (Transmittance modes : แบบ RTRAN )
- ช่องวัดมีขนาดใหญ่ (LAV) ,ขนาดกลาง (MAV) และ ขนาดเล็ก (SAV)
- มีระบบการเปลี่ยนเลนส์ (Lens Switching )เมื่อเปลี่ยนขนาดช่องวัด ทั้งขนาดใหญ่ กลางและเล็กเป็นแบบอัตโนมัติ
- มีขนาดเส้นผ่านศูนย์กลาง Sphere ไม่น้อยกว่า 6 นิ้ว วัสดุที่ใช้เคลือบภายในของ Sphere ทำมาจาก Spectraflect และช่องปิด-เปิด ทำจาก Duraflect
- การอ่านค่าทวนซ้ำ 20 ครั้ง ของเครื่อง ( Repeatability ) มีค่าน้อยกว่า 0.03ΔE* CIE L*a*b* on white tile in LAV modes
ชุดอุปกรณ์รับสัญญาณแสง (Spectrophotometer)
- มีชุดรับสัญญาณแสง (Spectrophotometer) มี element photo diode array (PDA) 512 จำนวน 2 ชุด หรือ 1024 ตัว เพื่อช่วยในการตรวจจับปริมาณแสงได้ละเอียดมากขึ้น ทำให้การอ่านค่าสีของตัวอยางเป็นไปอย่างแม่นยำ
- สามารถอ่านค่าแสงที่ความยาวคลื่น (Spectral Range) 350 – 1050 นาโนเมตร สามารถายงานผลด้วย Software EasyMatch QC (Reporting Interval) ทุกๆ 5 นาโนเมตร และความละเอียดของความยาวคลื่น (Wavelength Resolution) ในการอ่านค่าในการวัดสีตัวอย่างน้อยกว่า 2 นาโนเมตร
- ควบคุมการทำงานผ่านโปรแกรม (Software EasyMatch QC)
- สามารถแสดงผลหน่วยการค่าสีและความแตกต่างของสีแบบ CIELab , CIELCh , Hunter Lab, Rdab , RxRyRz , XYZ , Yxy ได้
- สามารถแสดงผลรวมความแตกต่างของสี แบบ dE* (CIE), dE CMC , dE (Hunter), dC* (CIE), dC (Hunter) ได้
- สามารถเลือกแหล่งแสงประดิษฐ์ ( Illuminants ) ได้ไม่น้อยกว่า 20 แหล่ง คือ A, C, D50, D55, D65, D75, F2, F7, F11, LED B1, LED B2, LED B3, LED B4, LED B5, LED BH1, LED RGB1, LED V1, LED V2, TL84, ULT 30, and ULT 35
- สามารถแสดงดัชนีของการวัดค่าสีในสเกลสีเฉพาะทางได้หลายแบบ เช่น YI E313 , YI D1925 , WI E313 , WI CIE , WI GANZ, 457 Brightness , Y Brightness , Z% , APHA (10,20 and 50mm), ADMI (10,20 and 50mm) , ASTM D1500, Gardner D6166 , Saybolt , LOVIBOND® RY (d/8° only), AOCS RY (d/8° only), Acid Wash Color (d/8° only), EP (d/8° only), USP (d/8° only), CP (d/8° only), FAC (d/8° only), Iodine (d/8° only), EBC (d/8° only), ASBC (d/8° only), Tint CIE , Tint E313 , Tint GANZ , Dominant Wavelength , ค่าความทึบแสง Opacity, ค่าความขุ่น Haze , ความเข้มของสี ( Average Strength )
- สามารถแสดงผลข้อมูลได้หลายแบบ ตามนี้ Job Tree , แสดงแบบตารางตัวเลขค่าสี (Color Data Table), Color Plot 2-dimensional and 3-dimensional , แสดงแบบสเป็คตรัล เป็นตัวเลข/กราฟ (Spectral Data Table / Plot) , แสดงผลแบบ ผ่าน/ไม่ผ่าน (Pass/Fail) , แบบค่าเฉลี่ย (Average) และแบบค่าเบี่ยงเบนมาตรฐาน (Standard Deviation)
- สามารถสร้างสูตรสมการหน่วยของการวัดสีเอง (Custom Formula) ด้วย Software ที่ใช้งานร่วมกับเครื่องวัดสี UltraScan PRO

Product Specifications
Measurement Principle: Dual-beam spectrophotometer
Geometry: Diffuse d/8° reflectance, d/8° total transmission, d/0° regular transmission
Spectrophotometer: Two polychromators, each with a 512 element diode array and a high resolution, concave holographic grating
Sphere Diameter: 152 mm (6 in.)
Sphere Coating: Spectraflect™ for sphere, Duraflect™ for port plate and specular exclusion door
Port Size/Measured Area:
- Port Diameter/View Diameter in RSIN/RSEX reflectance modes
- Large Area View (LAV): 25 mm (1 in) illuminated/19 mm (0.75 in) measured
- Medium Area View (MAV): 13 mm (0.5 in) illuminated/9 mm (0.35 in) measured
- Small Area View (SAV): 7 mm (0.25 in) illuminated/4 mm (0.16 in) measured
- Port Diameter/View Diameter in TTRAN transmittance modes
- Large Area View (LAV): 25 mm (1 in) illuminated/17.4 mm (0.69 in) measured
- Medium Area View (MAV): 25 mm (1 in) illuminated/13.2 mm (0.52 in) measured
- Small Area View (SAV): 25 mm (1 in) illuminated/11.6 mm (0.46 in) measured
- Port Diameter/View Diameter in RTRAN transmittance mode where lens is field stop for all areas of view
- Large Area View (LAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
- Medium Area View (MAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
- Small Area View (SAV): 17 mm (0.67 in) illuminated/17 mm (0.67 in) measured
Lens Switching for LAV/MAV/SAV: Automatic
Specular Component: Automated Included (RSIN) or Excluded (RSEX) in reflectance
Spectral Range: 350 nm – 1050 nm full CIE visible range plus NIR
Wavelength Resolution: < 2 nm
Effective Bandwidth: 5 nm equivalent triangular
Reporting Interval: 5 nm
Photometric Range: 0-150 %
Light Source: Pulsed Xenon lamps (3), calibrated and controlled in the UV range
Automatic UV Control:
- 400 nm cutoff filter for UV control and UV exclusion
- Optional 420 nm cutoff filter for UV exclusion
Transmission Modes: Total (TTRAN) and Regular (RTRAN)
Transmission Compartment:
- Large and open on 3 sides
- 10.2 cm D X 35.6 cm W x 16.5 cm H (4 in. D x 14 in. W x 6.5 in. H)
Standards Conformance
- Reflectance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C
- Transmittance: CIE 15:2004, ASTM E1164, DIN 5033 Teil 7 and JIS Z 8722 Condition E, G Haze conformance per ASTM D1003 Section 8. Procedure B Spectrophotometer
Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
Colorimetric Repeatability (20 readings):
- < 0.03 ∆E* CIE L*a*b * on white tile in LAV mode
- < 0.07 ∆E* CIE L*a*b* on blue denim tile in LAV mode
Spectral Repeatability: Max 0.20 range between 435 nm and 695 nm
Inter-instrument Agreement:
- ∆E*< 0.09 CIE L*a*b* (Avg) on BCRA II Tile Set
- ∆E*< 0.20 CIE L*a*b* (Max) on BCRA II Tile Set
Dimensions:
- Height: 32.3 cm (12.7 in.)
- Width: 42.0 cm (16.5 in.)
- Depth: 49.8 cm (19.6 in.)
- Weight: 25.9 kg (57 lbs)
Power:
- 90 to 250 VAC, 50 to 60 Hz
- 60 watts passive, 120 watts maximum
Interface: RS-232C serial, 19,200 baud, DB9 (female) terminal
Operating Environment: 4° to 38°C (40° to 100° F), 10 % to 85 % RH, noncondensing
Storage Environment: -21° to 66°C (-5° to 150° F), 10 % to 90 % RH, noncondensing (-5° to 150° F)
Standard Accessories:
- Calibrated instrument white tile
- Certificate of traceability
- Black calibration light trap
- Transmittance zero calibration plate
- Green diagnostic tile
- Wavelength diagnostic filter
- Fluorescent standard
- Reflectance sample clamp
- LAV aperture
- MAV aperture
- SAV aperture
- RS-232C cable
- USB-to-Serial adapter
- Power cord
- EasyMatch QC Software
- EasyMatch QC Basic manual
