PULVERISETTE 15 Cutting Mill
The FRITSCH Cutting Mill PULVERISETTE 15 is ideal for the comminution of dry sample materials with soft to medium-hard consistency, for fibrous materials or cellulosic materials, as well as for sample preparation according to RoHS with a feed size of 70 x 70 mm and a throughput quantity of up to 50l/h. A cutting rotor speed of up to 3400 rpm ensures a high air throughput, fast processing and reproducible results.
The simple FRITSCH cleaning makes your work much easie เครื่องบดย่อยตัวอย่างของแข็ง
เครื่องบดย่อยตัวอย่างของแข็ง CUTTING MILL ยี่ห้อ FRITSCH รุ่น PULVERISETTE 15
เครื่องบดย่อยตัวอย่างของแข็ง เป็นชุดเครื่องมือตั้งโต๊ะหรือตั้งพื้น พร้อมอุปกรณ์ใช้สำหรับบดตัวอย่างแห้ง ที่มีลักษณะ แข็งปานกลาง ซึ่งตัวอย่างที่สามารถบดได้ เช่น ไม้,ราก ,ใบ, อาหารสัตว์, ธัญพืช ,กระดาษ ,ยาง , หนัง , พลาสติก, ผ้า , เส้นใย และอื่น ๆ ที่เกี่ยวข้องกับการเตรียมตัวอย่างโดยการลดขนาดตัวอย่าง เพื่อนำไปวิเคราะห์ทางกายภาพและเคมี ต่อไป

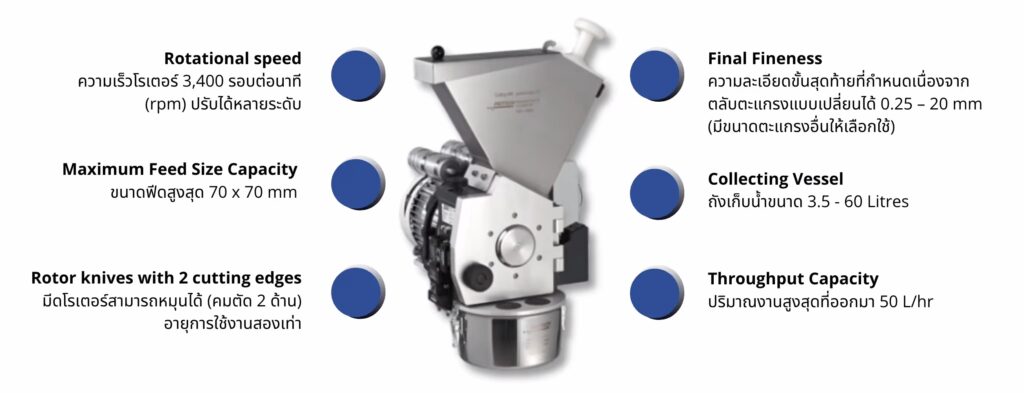

AT A GLANCE
- Rotor speed up to 3400 rpm
- Collecting vessel 3.5 litres or 60 litres
- Externally adjustable cutting gap
- Stable operation due to double rotor bearing
- Rotor knives can be turned, double service life
IDEAL FOR
- PLASTICS AND TEXTILES
- AGRICULTURE AND FORESTRY
- ENVIRONMENT
- ROHS
- ANALYTIC
- CONSTRUCTION MATERIALS
- CHEMISTRY
- FOOD STUFFS
| Working principle | cutting |
| Optimal for material type | medium-hard, soft, fibrous samples |
| Cutting tools | rotor with straight cutting edges and fixed knives |
| Materials of the cutting tools | tool steel, stainless steel 316L, chromium-free tool steel, chromium-free steel DC01 |
| Max. feed size (depending on the material and funnel) | 70 x 70 mm |
| Max. throughput (depending on the material and sieve size) | 50 l/h |
| Final fineness (depends on sieve insert – additional sieve sizes available) | 0.25 – 20 mm |
| Feeding | batchwise/continuous |
| Rotor speed | 2800/3400 rpm* |
| Rotor peripheral speed | 14.92/17.9 m/s* |
| Drive | Up to 2.1 kW three-phase motor or single phase motor |
| Electrical Details/torque | 400 V/3~, 50 Hz, 1790 watt, 5.5 Nm |
| Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground, rotor and sieve insert used) | LpAd = 78 dB |
| Weight | 32 kg |
| Dimensions (W x D x H) | table-mounting or on stand 42 x 48 x 69 cm |
| *depending voltage and frequency |
The Cutting Mill PULVERISETTE 15 is also available in the following voltages:
| Order no. | Electrical details / Torque |
| 15.4030.00 | for 400 V/3~, 50 Hz, 1790 watt, 5.5 Nm |
| 15.4020.00 | for 200-240 V/1~, 50 Hz, 2150 watt, 4.8 Nm |
| 15.4050.00 | for 200 V/3~, 60 Hz, 2140 watt, 5.5 Nm |
| 15.4010.00 | for 100-120 V/1~, 60 Hz, 1900 watt, 3 Nm |
The PULVERISETTE 15 with voltage of “/3~” can only be operated on a three-phase supply network.
The three-phase version “/3~” is definitely preferable instead of a single-phase version “/1~”, because the three-phase version obtains more power, better effectiveness and greater energy efficiency.
Other voltages on request!
Unique grinding chamber geometry
In Cutting Mills, the sample is comminuted according to the cutting principle of scissors, increasingly fine between the knives of the rotor and fixed knives until the desired final fineness is achieved.
Unique grinding chamber geometry: The grinding chamber is designed with minimal dead space and progressive cutting geometry between rotor and fixed knives. The sample material is continuously moved during comminution and cannot settle anywhere. In conjunctions with the special air flow, this is the basis for swift, blockage-free operation and fast cleaning without residue.
- Fast, reproducible size reduction due to high cutting rotor speed of up to 3400 rpm
- Max. feed size 70 x 70 mm
- Throughput quantity of up to 50 l/h
- Defined final fineness replaceable sieve inserts 0.25 – 20 mm, (further sieve sizes available)
- Collecting vessel 3.5 litres or 60 litres
- Funnel for long- and bulk solids or protected funnel made of stainless steel with plastic sample pusher
- Housing and closing lid can be lifted to open completely – lid completely removable
- Externally adjustable cutting gap
- Rotor knives can be turned (2 cutting edges) – double service life
- Very stable: the rotor with double bearing on shaft and in the lid.
- Especially easy FRITSCH cleaning
- Optimum airflow for particularly fast size reduction and secure protection against clogging
- Extensive accessories for simplifying your daily work
Configure your Cutting Mill PULVERISETTE 15 exactly to your specific application
The Cutting Mill PULVERISETTE 15 is delivered without funnel, cutting tool set (consisting of rotors and fixed knives), sieve inserts, collection vessel and stand. Various funnels, collection vessels, rotors with fixed knives, sieve inserts and a support stand enable you to configure the Cutting Mill exactly for your application.
