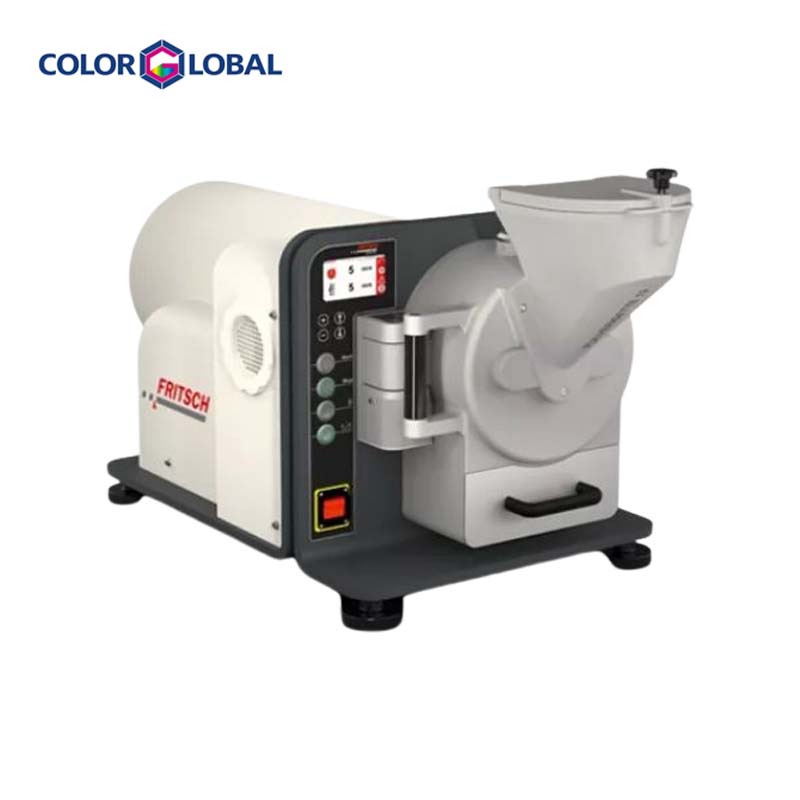

PULVERISETTE 13 premium line Disk Mill
The premium model of the FRITSCH Disk Mill for efficient fine grinding of hard-brittle to medium-hard solids: Even safer due to the automatic locking of the collecting vessel and grinding chamber, even easier to operate due to the convenient motor-driven grinding gap adjustment with digital gap display. A well-designed display shows all of the parameters.
Ideal for medium particle sizes in the areas of mining and metallurgy, ceramics industry, rocks and soils, glass industry, soil research. เครื่องบดตัวอย่างแบบดีสมิล
เครื่องบดตัวอย่างแบบดีสมิล DISK MILL ยี่ห้อ FRITSCH รุ่น PULVERISETTE 13 Premium Line
เครื่องบดและลดขนาดตัวอย่าง โดยใช้เทคนิดแบบแรงเฉือน (Shearing) และแรงกดบิด (Friction) โดยมีร่องโลหะเพื่อเพิ่มพื้นที่ของแรงเฉือน และสามารถที่จะบดตัวอย่างได้ทั้งแบบ แข็งเปราะ และ แข็งปานกลาง โดยขนาดของตัวอย่างที่ทำการบดลดขนาดใหญ่ที่สุดไม่เกิน 20 มิลลิเมตร

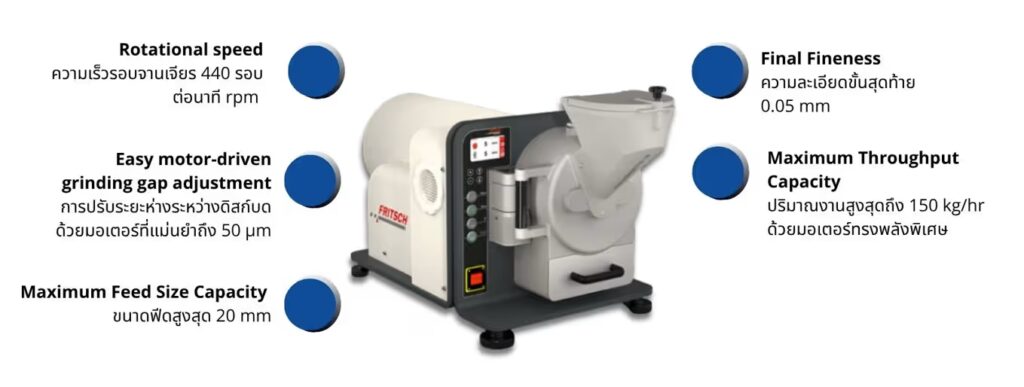

AT A GLANCE
- Fine grinding down to 0.05 mm
- Easy motor-driven grinding gap adjustment
- Easy operation and cleaning with Clean Design
- High throughput of up to 150 kg/h, with extra powerful motor
IDEAL FOR
- GLASS- AND CERAMICS INDUSTRY
- MINING AND METALLURGY
- GEOLOGY AND MINERALOGY
- CHEMICAL INDUSTRY
- SOIL RESEARCH
Working principle | shearing |
Optimal for material type | very hard, hard-abrasive, hard-brittle, medium-hard samples and for metal-free grinding |
Grinding tools | fixed and movable grinding disk |
Materials of the grinding tools | hardened steel cast, manganese steel, hardmetal tungsten carbide, zirconium oxide |
Max. feed size (depending on the material) | 20 mm |
Min. sample quantity | 20 – 30 ml |
Max. throughput (depends on material) | 150 kg/h |
Final fineness | 0.05 – 12 mm |
Feeding | batchwise/ continuous |
Rotating speed | grinding disk 440 rpm |
Bearings | needle and double row angular contact ball bearings |
Electrical Details*(Other voltages on request) | 400 V/3~, 50 Hz, 1790 Watt |
Instrument also available in the following voltage | 200 V/3~, 60 Hz, 2100 Watt order no. 13.3020.00 |
Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground) | Approx. LpAd = 70 dB |
Weight | 240 kg |
Dimensions (W x D x H) | bench top instrument 52 x 105 x 63 cm |
*The three-phase AC version„/3~“ is definitely preferable over a single-phase version „/1~“, since you obtain with the three-phase AC version more power, better effectiveness and a greater energy efficiency.
Please note: the three-phase AC version „/3~“ must always be operated on a three-phase supply network.
HIGH FINAL FINENESS IN MINIMUM TIME
Below are examples listed – always in reference to 1 kg feed quantity and 20 mm feed size and arranged by material type from hard to medium-hard.
ORIENTATION GUIDE FOR MATERIALS AND INSTRUMENTS SETTINGS
Material to be ground | Grinding time | Gap setting | Fineness (µm) | Throughput | |
(min) | (mm) | 90% < x |
50% < x |
(kg/h) | |
Basalt | 2.1 3.5 |
1.0 0.1 |
220 | 600 60 |
28 17 |
Clinker | 2.0 10.0 |
0.5 0.1 |
900 220 |
450 60 |
30 6 |
Slate | 1.4 2.2 |
1.0 0.1 |
300 | 1500 90 |
45 27 |
Hard coal | 3.5 13.5 |
1.0 0.1 |
250 | 800 100 |
17 4 |
Limestone | 2.0 6.3 |
1.0 0.1 |
1000 210 |
420 100 |
30 10 |
Thomas meal (potash) | 1.3 2.3 |
1.0 0.5 |
1000 350 |
350 150 |
45 26 |
Pumice stone | 3.5 5.0 |
0.5 0.1 |
600 150 |
250 30 |
17 12 |
Glass | 2.5 3.3 3.8 |
3.0 2.0 1.0 |
4000 2500 1400 |
2240 1600 800 |
25 18 16 |
PLEASE NOTE
The indicated results are to be considered as an orientation guide, since the chemical and physical properties (e.g. residual moisture, morphology, etc.) can vary even with the same material to be ground. |
Pressure and shearing action
In the Disk Mill, the material to be ground is comminuted by pressure and shearing action between two counteracting grinding disks with coarse interlocking teeth. The ground material automatically falls down through the pre-set grinding gap into the collection drawer. The desired final fineness can be defined reproducibly by simply adjusting the digital setting of the gap width.
- Feed size 20 mm
- Max. throughput 150 kg/h with extra powerful motor
- Rotating speed grinding disk 440 U/min
- Fine grinding down to 0.05 mm
- Motor-driven grinding gap adjustment in 0.05 mm steps
- Especially safe due to automatic safety locks for locking grinding chamber and drawer
- Easy cleaning and optimal material feeding due to large removable plastic funnel
- Clean Design: smooth grinding chamber inner surfaces and labyrinth sealing of grinding chamber ensure a fast cleaning an protection against contamination of the sample
- Dust-free grinding due to connection of dust exhaust system and special sealing of drawer
- Automatic safety locks for clamping the lock and grinding chamber drawer automatically
- Precise motor-driven adjustment of distance between grinding disks of up to 50 µm accuracy
- Motor-driven zero point adjustment for compensating wear on grinding disks and precise re-adjustment after replacement
- Longer service life of grinding disks via the control display
- Easy change of the grinding disks
- Combinable with the Jaw Crusher PULVERISETTE 1 premium line
Configure your Disk Mill PULVERISETTE 13 premium line exactly to your specific application
For every FRITSCH Disk Mill PULVERISETTE 13 premium line, you need at least one fixed and one movable grinding disk. These are available in 4 different materials. Normally, two grinding disks of the same material are selected which must always be harder than the sample to be ground.
Metal-free grinding
Ideal for medical and dental engineering: On request, we can equip your PULVERISETTE 13 premium line with a complete polymer interior coating together with grinding disks made of zirconium oxide – the perfect pre-requisite for grinding without any contact of the sample with metal.
VIEW EXTENSIVE ACCESSORIES
The premium combination for integrated pre- and fine-grinding
For especially fast continuous premium pre- and fine-grinding of large quantities of coarse material, the combination of the Disk Mill PULVERISETTE 13 premium line and the Jaw Crusher PULVERISETTE 1 premium line is the ideal solution. Together, they form an efficient, heavy-duty, high-performance grinding instrument with integrated Riffle Sample Splitter. This gives you the full range of opportunities for optimal sample preparation with a feed size of up to 95 mm and final fineness of down to 0.05mm – all in a single step.
READ DETAILS ABOUT THE COMBINATION OF DISK MILL PULVERISETTE 13 PREMIUM LINE AND JAW CRUSHER PULVERISETTE 1 PREMIUM LINE
