PULVERISETTE 13 classic line Disk Mill เครื่องบดตัวอย่างแร่

เครื่องบดและลดขนาดตัวอย่าง โดยใช้เทคนิดแบบแรงเฉือน (Shearing) และแรงกดบิด (Friction) โดยมีร่องโลหะเพื่อเพิ่มพื้นที่ของแรงเฉือน และสามารถที่จะบดตัวอย่างได้ทั้งแบบ แข็งเปราะ และ แข็งปานกลาง โดยขนาดของตัวอย่างที่ทำการบดลดขนาดใหญ่ที่สุดไม่เกิน 20 มิลลิเมตร

Add to wishlist

หมวดหมู่: Disk Mills ป้ายกำกับ: Disk Mill, PULVERISETTE 13 classic, PULVERISETTE 13 Classic Line, เครื่องบดตัวอย่างแร่

คำอธิบาย

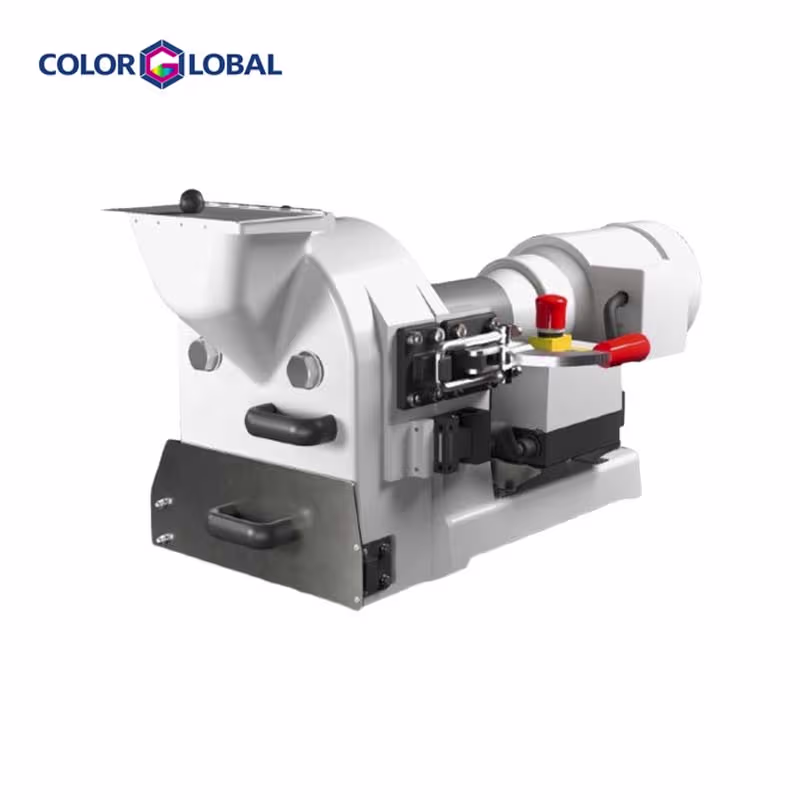

PULVERISETTE 13 classic line Disk Mill

High final fineness for large quantities The especially heavy and solid FRITSCH Disk Mill PULVERISETTE 13 classic line is the ideal instrument for fine grinding of up to 150 kg per hour of hard-brittle and medium-hard solids – even in continuous operation. The maximum feed size per piece is approximately 20 mm edge length, the final fineness is freely adjustable between 12 mm and 0.1 mm. เครื่องบดตัวอย่างแร่

เครื่องบดตัวอย่าง แร่ DISK MILL ยี่ห้อ FRITSCH รุ่น PULVERISETTE 13 Classic Line

AT A GLANCE

Fine grinding down to 0.1 mm
Precision setting of the final fineness even during grinding
Simple operation
Fast, easy cleaning
High throughput up to 150 kg/h

IDEAL FOR

GLASS- AND CERAMICS INDUSTRY
MINING AND METALLURGY
GEOLOGY AND MINERALOGY
CHEMICAL INDUSTRY
SOIL RESEARCH

TECHNUCAL DATA

Working principle	shearing
Optimal for material type	very hard, hard-abrasive, hard-brittle, medium-hard samples and for metal-free grinding
Grinding tools	fixed and movable grinding disk
Materials of the grinding tools	hardened steel cast, manganese steel, hardmetal tungsten carbide, zirconium oxide
Max. feed size (depending on the material)	20 mm
Min. sample quantity	20 – 30 ml
Max. throughput (depends on material)	150 kg/h
Final fineness	0.1 – 12 mm
Feeding	batchwise/ continuous
Rotating speed	grinding disk 440 rpm
Bearings	needle and double row angular contact ball bearings
Electrical Details*	400 V/3~, 50 Hz, 1790 watt
Instrument also available in the following voltage (other voltages on request)	200 V/3~, 60 Hz, 2100 watt order no. 13.1020.00
Emission sound pressure level at the workplace according to DIN EN ISO 3746 (depending on the material to be ground)	approx. L_pAd = 81 dB
Weight	140 kg
Dimensions (W x D x H)	bench top instrument 44 x 87 x 40 cm

*The three-phase AC version„/3~“ is definitely preferable over a single-phase version „/1~“, since you obtain with the three-phase AC version more power, better effectiveness and a greater energy efficiency.

Please note: the three-phase AC version „/3~“ must always be operated on a three-phase supply network.

HIGH FINAL FINENESS IN MINIMUM TIME

Below are examples listed – always in reference to 1 kg feed quantity and 20 mm particle size and arranged by material types from hard to medium-hard.

ORIENTATION GUIDE FOR MATERIALS AND INSTRUMENTS SETTINGS

Material to be ground	Grinding time	Gap setting	Fineness (µm)		Throughput
	(min)	(mm)	90% < x	50% < x	(kg/h)
Basalt	2.1 3.5	1.0 0.1	220	600 60	28 17
Clinker	2.0 10.0	0.5 0.1	900 220	450 60	30 6
Slate	1.4 2.2	1.0 0.1	300	1500 90	45 27
Hard coal	3.5 13.5	1.0 0.1	250	800 100	17 4
Limestone	2.0 6.3	1.0 0.1	1000 210	420 100	30 10
Thomas meal (potash)	1.3 2.3	1.0 0.5	1000 350	350 150	45 26
Pumice stone	3.5 5.0	0.5 0.1	600 150	250 30	17 12
Glass	2.5 3.3 3.8	3.0 2.0 1.0	4000 2500 1400	2240 1600 800	25 18 16

PLEASE NOTE

The indicated results are to be considered as an orientation guide, since the chemical and physical properties (e.g. residual moisture, morphology, etc.) can vary even with the same material to be ground.

WORKING PRINCIPLE

Pressure and shearing action

The material to be ground is comminuted by pressure and shearing action between two counteracting grinding disks with coarse interlocking teeth. The ground material automatically falls down through a pre-set grinding gap into the collection drawer. The desired final fineness can be defined from the outside by changing the gap width.

FEATURES

Feed size up to 20 mm
max. throughput150 kg/h
Final fineness 0.1 -12 mm
Rotational speed grinding disk 440 rpm
Precise gap adjustment with an accuracy of 0.1 mm
Especially safe due to central tension lock of the grinding chamber
Fast, easy cleaning
Simple operation
Fast grinding disk change
Precision setting of the final fineness even during grinding
High service life due to generously dimensioned bearings
Easy gap width check from the outside
Combinable with the Jaw Crusher PULVERISETTE 1 classic line

VIEW EXTENSIVE ACCESSORIES

EQUIPMENT / ACCESSORIES

Configure your Disk Mill PULVERISETTE 13 classic line exactly to your specific application

For every FRITSCH Disk Mill PULVERISETTE 13 classic line, you need at least one fixed and one movable grinding disk, which are available in various materials. Normally, two grinding disks of the same material are selected, which must always be harder than the sample to be ground. Grinding disks of zirconium oxide are only suitable for grinding ceramic materials, minerals, etc. and never for hard-tough samples, such as metals.

Metal-free grinding

For completely metal-free grinding of hard-brittle and medium-hard solid samples, for example for dental ceramics, we can equip your FRITSCH Disk Mill PULVERISETTE 13 classic line with a thorough polymer interior coating – together with grinding disks made of zirconium oxide – an absolutely reliable protection against iron contamination.
VIEW EXTENSIVE ACCESSORIES

The powerful combination for pre- and fine-crushing in a single step

For fast, continuous pre- and fine-grinding particularly of large quantities of coarse material, the combination of the FRITSCH Disk Mill PULVERISETTE 13 classic line and the FRITSCH Jaw crusher PULVERISETTE 1 classic line is the ideal solution. Mounted together onto a rack and connected to each other by a chute, they automatically grind the material from a particle size of up to 95 mm to a final fineness of down to 100 μm – fast, easy and effective in a single step!
READ DETAILS ABOUT THE COMBINATION OF THE DISK MILL PULVERISETTE 13 CLASSIC LINE AND JAW CRUSHER PULVERISETTE 1 CLASSIC LINE

HIGH FINAL FINENESS IN THE SHORTEST TIME

Especially time saving:
The grinding chamber can be completely opened which makes cleaning especially simple and the grinding disks are very easily accessible for changing.

Especially accurate
The precision sliding table of the FRITSCH Disk Mill PULVERISETTE 13 classic line for precise gap adjustment with an accuracy of 0.1 mm – for rapid, precise operation and exactly reproducible grinding results.

Safe and easy to clean
The completely accessible grinding chamber makes cleaning particularly easy and the grinding disks particularly accessible for changing. The grinding chamber is locked by a central tension lock with a single motion. The optional dust exhaust system for connecting an extraction device makes it particularly easy to automatically remove the fine dust produced during grinding and is also ideal for cleaning the grinding parts.

Practical grinding gap adjustment via precision sliding table
The grinding gap is set via the precision sliding table with 0.1 mm accuracy using a crank – for fast, accurate work and precisely reproducible grinding results. The gap width check can be conducted from the outside (e.g. with thickness gauge).

Longer service life of the grinding discs by reversing the direction of rotation
The service life of the grinding discs can be extended simply by reversing the direction of rotation of the maintenance-free three-phase geared motor.

Especially solid
The thick-walled housing of the FRITSCH PULVERISETTE 13 classic line consists of recyclable grey cast iron.
